Wix Filters 33604 Fuel Filter Water Separator Filter Various Cummins Engines
~Product~
| Condition | New |
| Model/Part # | 33604, WIX 33604 |
| Manufacturer Part Number | 33604 |
| Brand | WIX |
| Type | Full Flow |
| UPC | 33604 |
| Media Material | Enhanced Cellulose |
| Style | Spin-On Fuel/Water Separator Filter |
| Thread Size | 1-14 |
| Service | Fuel |
| Filter Type | Fuel/Water Separator Filter |
| Nominal Micron Rating | 8 Micron |
| Manufacturer | WIX Filters |
| Country/Region of Manufacture | United States |
| Max Flow Rate | 12-15 GPM |
| Outer Diameter Bottom | Closed |
| Duty Type | HD (Heavy Duty) |
| Burst Pressure-PSI | Typically 200 PSI |
Description
Wix Filters 33604 Fuel Filter Water Separator Filter Various Cummins Engines - Free Shipping

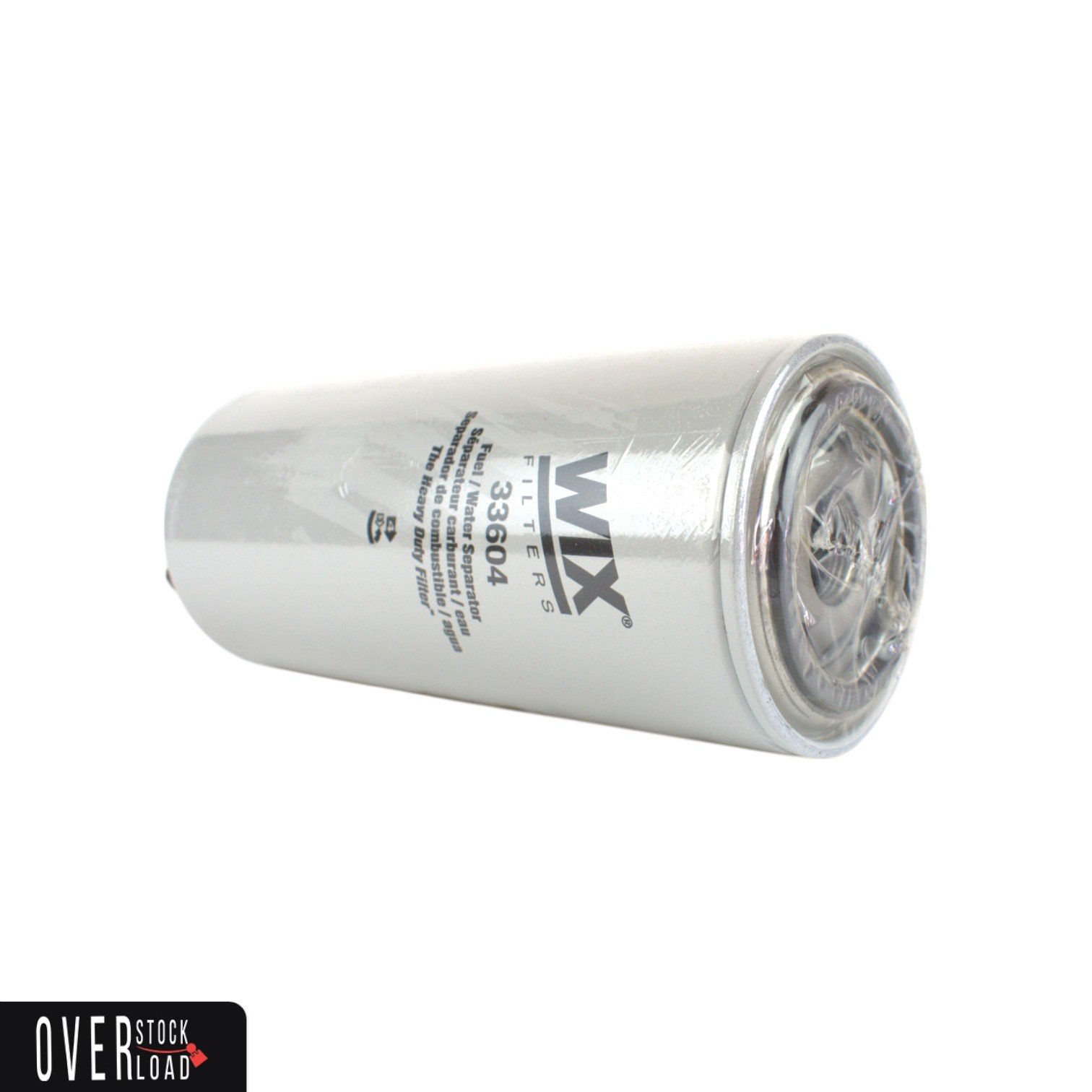

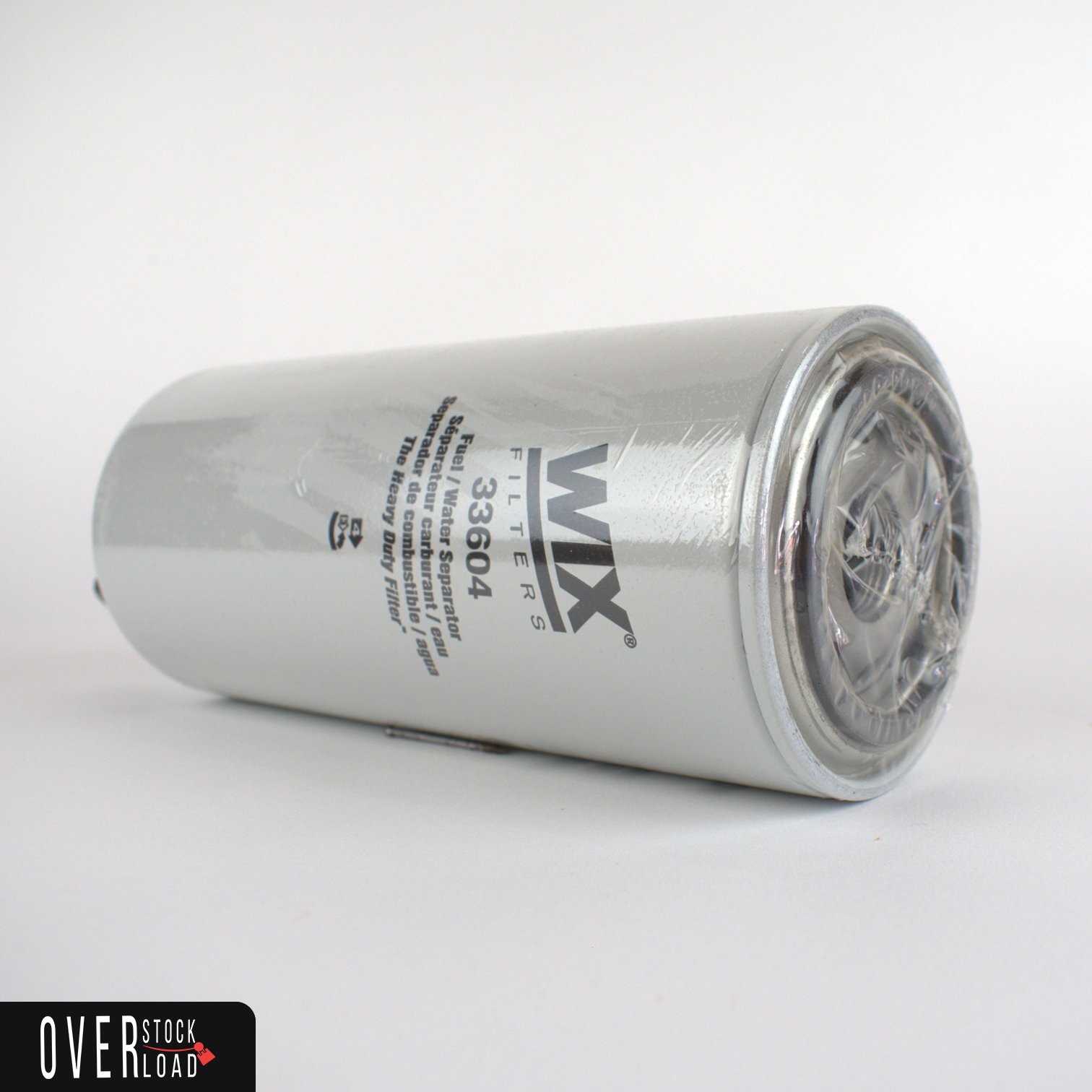

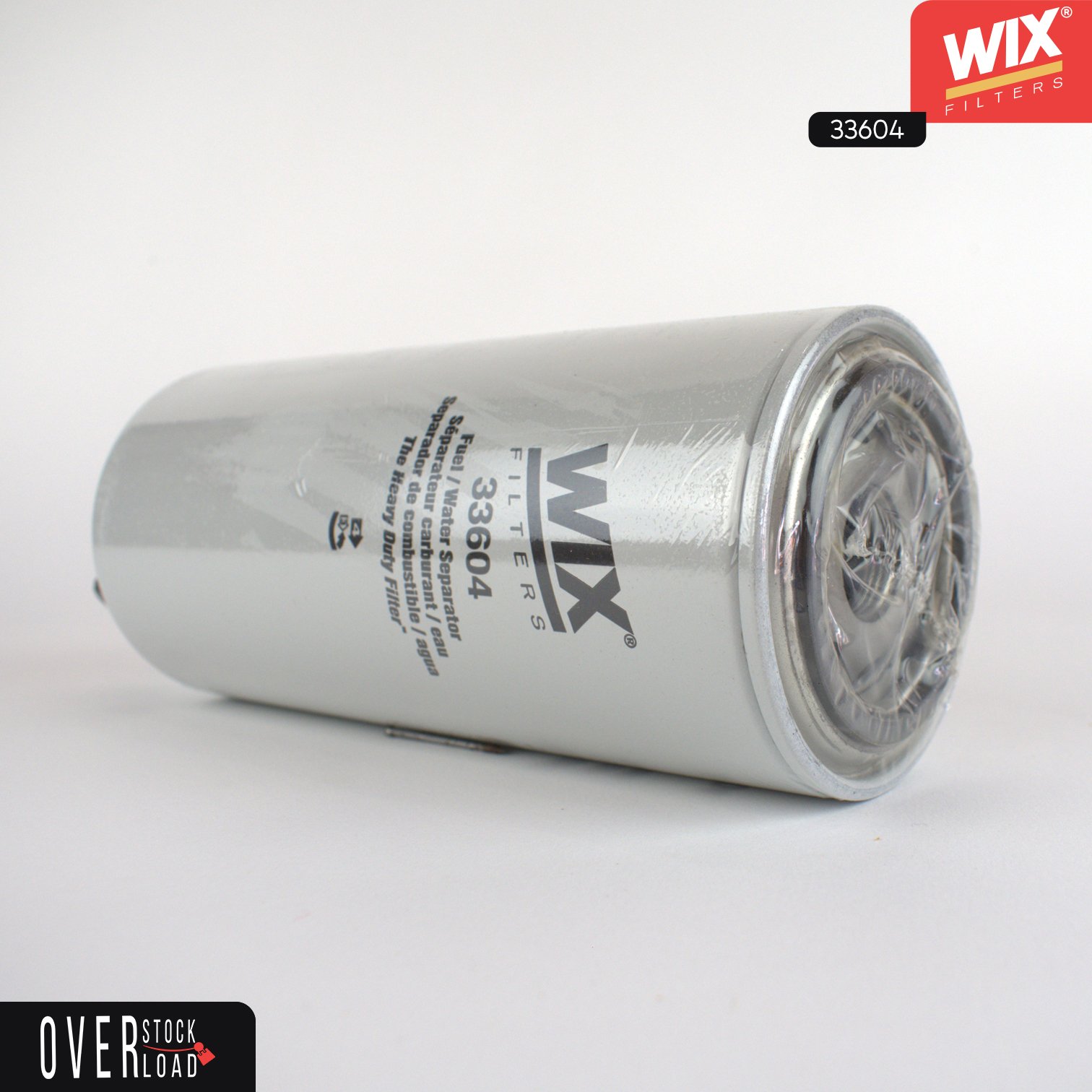

The WIX 33604 is a high-performance spin-on fuel filter and water separator designed for heavy-duty diesel engine applications, particularly well-suited for various Cummins engines. This critical component plays a dual role: it efficiently filters out harmful contaminants like dirt, rust, and debris from the diesel fuel, and it also effectively separates water, which can be highly damaging to diesel injection systems. By ensuring the delivery of clean, water-free fuel, the WIX 33604 safeguards sensitive fuel injectors, pumps, and other components, leading to improved engine performance, better fuel economy, and extended service life for the entire fuel system and engine.
Highlights
- Fuel Filtration and Water Separation: This filter provides comprehensive protection by simultaneously removing particulate contaminants and separating emulsified or free water from the fuel.
- Enhanced Media Technology: Features advanced enhanced cellulose silicone-treated media or a new generation full synthetic media. This media provides excellent contaminant holding capacity for super clean fuel and superior water removal capabilities.
- Durable Spin-On Design: The spin-on canister style allows for quick, easy, and mess-free installation and replacement, simplifying maintenance procedures.
- Robust Construction: Built with high-strength, corrosion-resistant steel cans, sturdy center tubes, and robust end caps. These components are designed to withstand the high pressures and vibrations of heavy-duty engine operation.
- Superior Sealing Components: Equipped with high-quality, built-in gaskets that ensure a tight, leak-resistant seal, preventing fuel bypass and ensuring all fuel passes through the filter media.
- Integrated Water Drain (on some models): Many 33604 filters include a water drain port with a threaded plug or a patented self-venting drain valve, allowing for efficient and easy purging of collected water.
- Protects Sensitive Fuel Systems: Essential for modern high-pressure common rail (HPCR) diesel systems, which are highly susceptible to damage from contaminants and water.
- Extends Component Life: By delivering clean and dry fuel, the filter significantly reduces wear and corrosion on fuel injectors, fuel pumps, and other costly fuel system components.
- Wide Application Compatibility: Primarily designed for various Cummins engines, it also cross-references with a broad range of OEM and aftermarket part numbers for heavy-duty trucks and equipment.
- Height: Approximately 9.73 inches (247 mm)
- Outer Diameter Top: Approximately 3.69 inches (94 mm)
