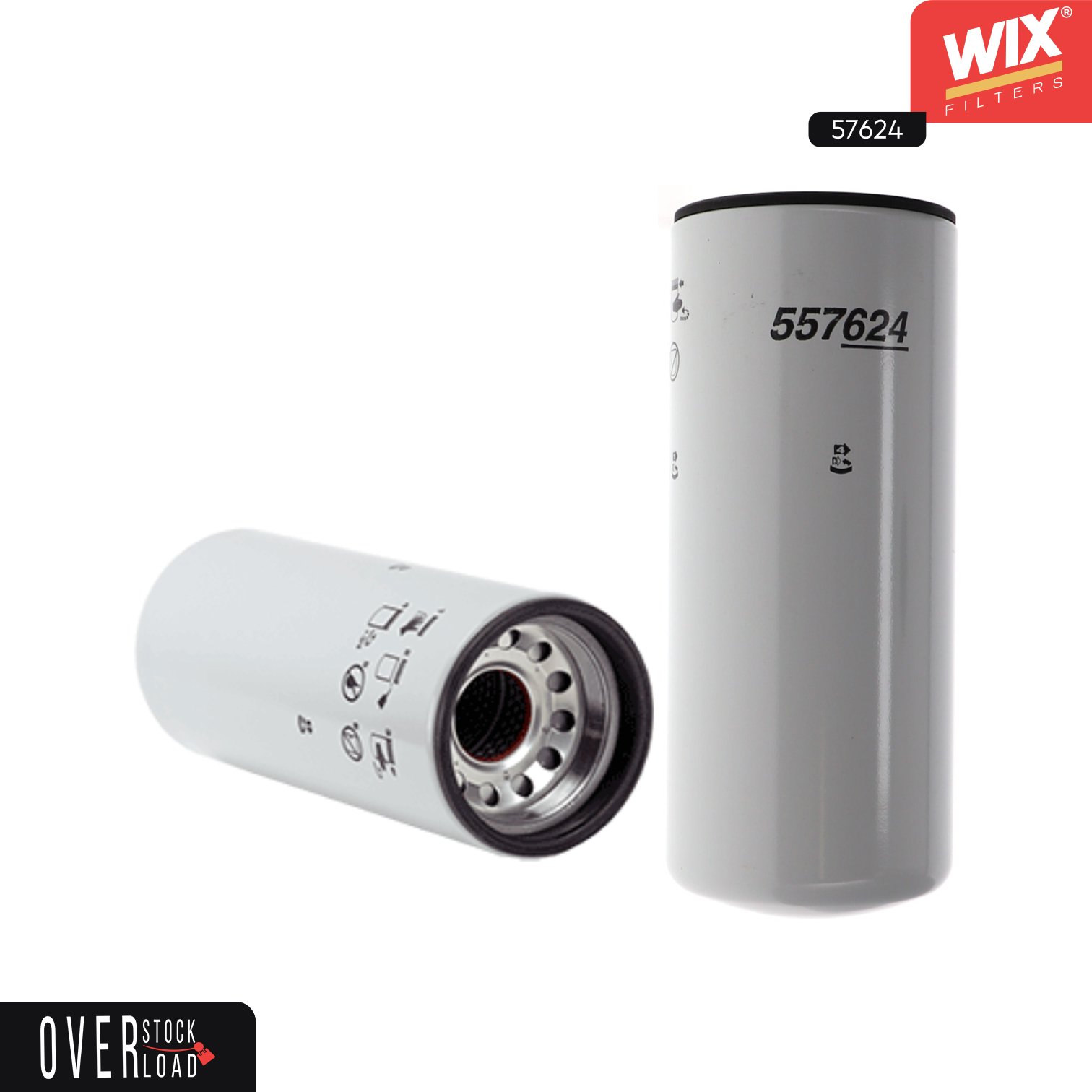

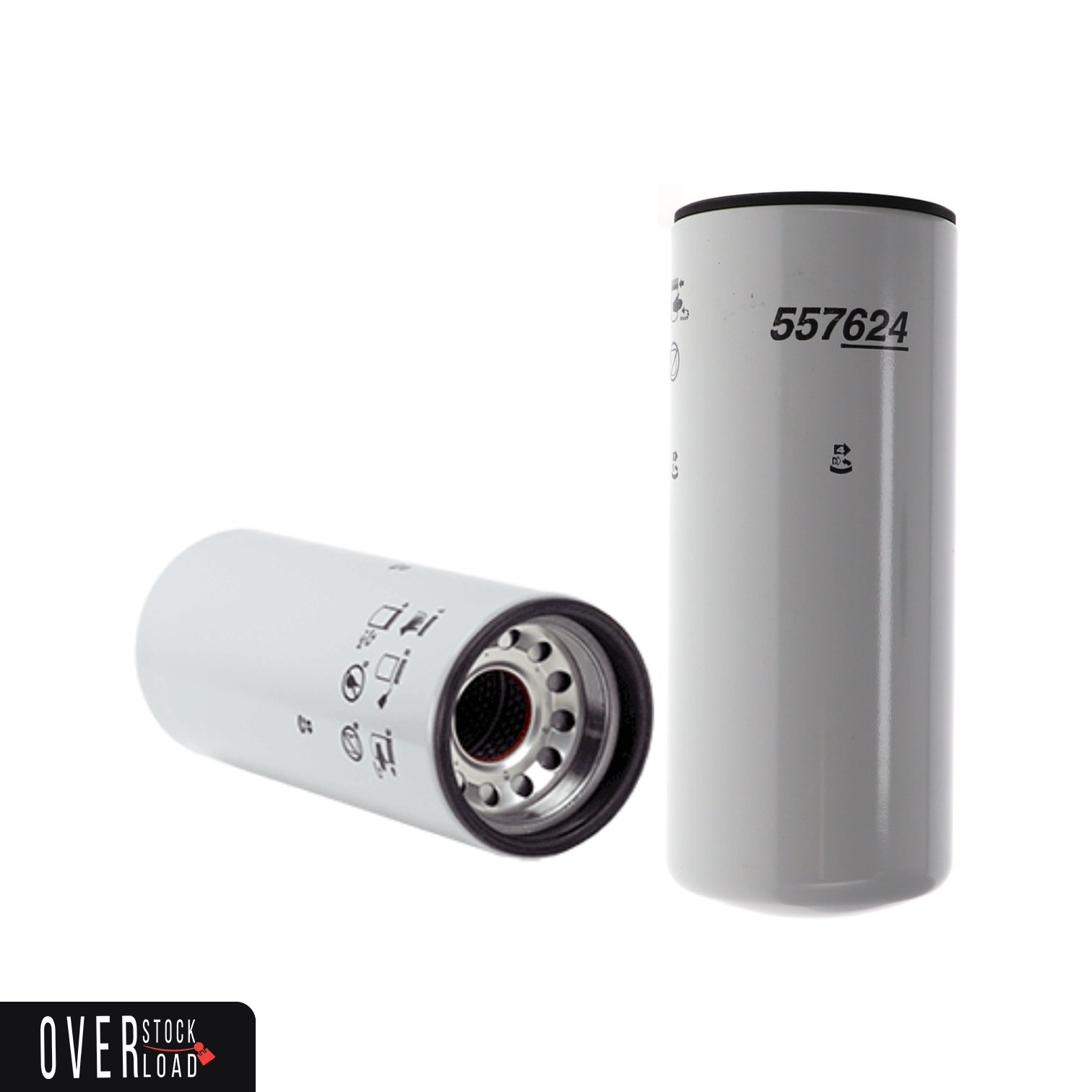

Wix 57624 Spin-On Hydraulic Filter

Condition	New
Model/Part #	57624, 557624
Manufacturer Part Number	57624
Brand	WIX
Type	Full Flow
UPC	765809576247
Product Grade	Performance Part
Media Material	Cellulose
Style	Spin-On Hydraulic Filter
Service	Hydraulic
Filter Type	Hydraulic Filter
Manufacturer	WIX
Country/Region of Manufacture	United States

Quantity	1

Description

Wix 57624 Spin-On Hydraulic Filter - Free Shipping

The Wix 57624 is a spin-on hydraulic filter designed to provide effective filtration for various hydraulic systems. It's engineered to remove contaminants from hydraulic fluid, protecting critical components like pumps, valves, and cylinders from wear and damage. Wix is a well-known brand in filtration, offering a range of filters for automotive, heavy-duty, agricultural, and industrial applications. This particular filter aims to meet or exceed OEM specifications for performance and reliability.

Highlights

Spin-On Design: Easy to install and replace, making maintenance quicker and more efficient.
Premium Filtration Media: Features high-quality media, often including enhanced cellulose, synthetic, or wire mesh materials, specifically chosen for hydraulic applications to capture a wide range of particles.
High Strength Construction: Built with durable materials, including robust steel casings, center tubes, and end caps, to withstand the demanding pressures and conditions within hydraulic systems.
Superior Sealing Components: Equipped with high-quality seals to prevent fluid bypass, ensuring that all fluid passes through the filter media for effective cleaning.
Contaminant Removal: Effectively removes dirt, debris, metal particles, and other contaminants that can cause wear and reduce the lifespan of hydraulic components.
Optimized Flow: Designed to provide efficient fluid flow with minimal restriction, maintaining proper system performance.
Longevity: Contributes to extending the life of hydraulic fluid and system components by keeping the fluid clean.
OEM Cross-Reference: Often cross-references with various OEM part numbers, making it a versatile aftermarket replacement.
Height: Approximately 11.903 inches (302 mm)
Outer Diameter Top: Approximately 4.720 inches (120 mm)
Outer Diameter Bottom: Closed
Thread Size: M90 x 2 MM (or 90X2 MM)
By-Pass Valve Setting-PSI: None (This filter typically does not have a bypass valve integrated, meaning all fluid is filtered)
Beta Ratio: 10/20/75=6/8/10 (This indicates filtration efficiency. For example, a Beta Ratio of 10 means that for every 10 particles of a given size entering the filter, 9 are captured, and 1 passes through, resulting in 90% efficiency at that micron size. The numbers 6, 8, and 10 refer to specific micron sizes at which these efficiencies are achieved.)
Max Flow Rate: 35 GPM (Gallons Per Minute)
Country of Origin: USA
