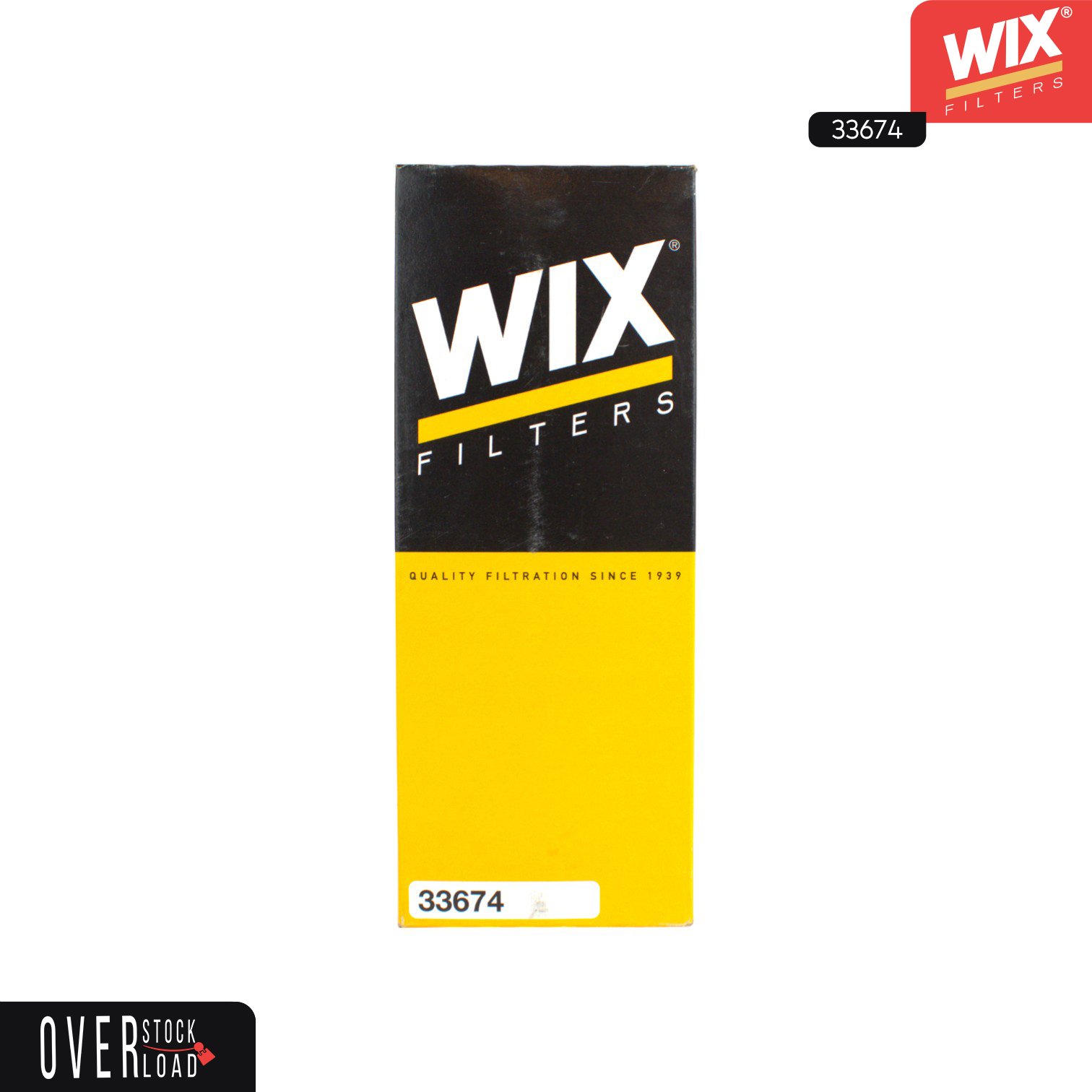

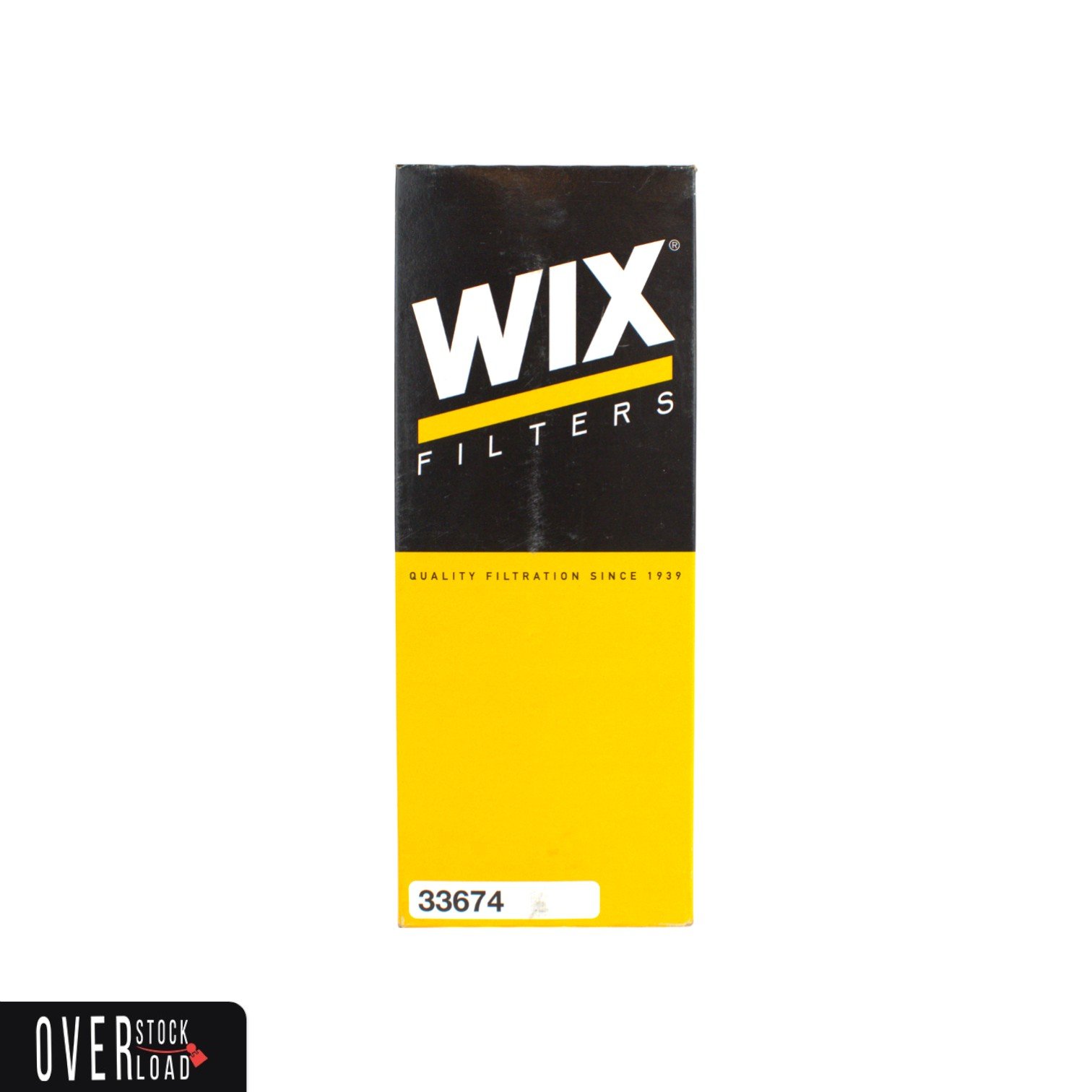

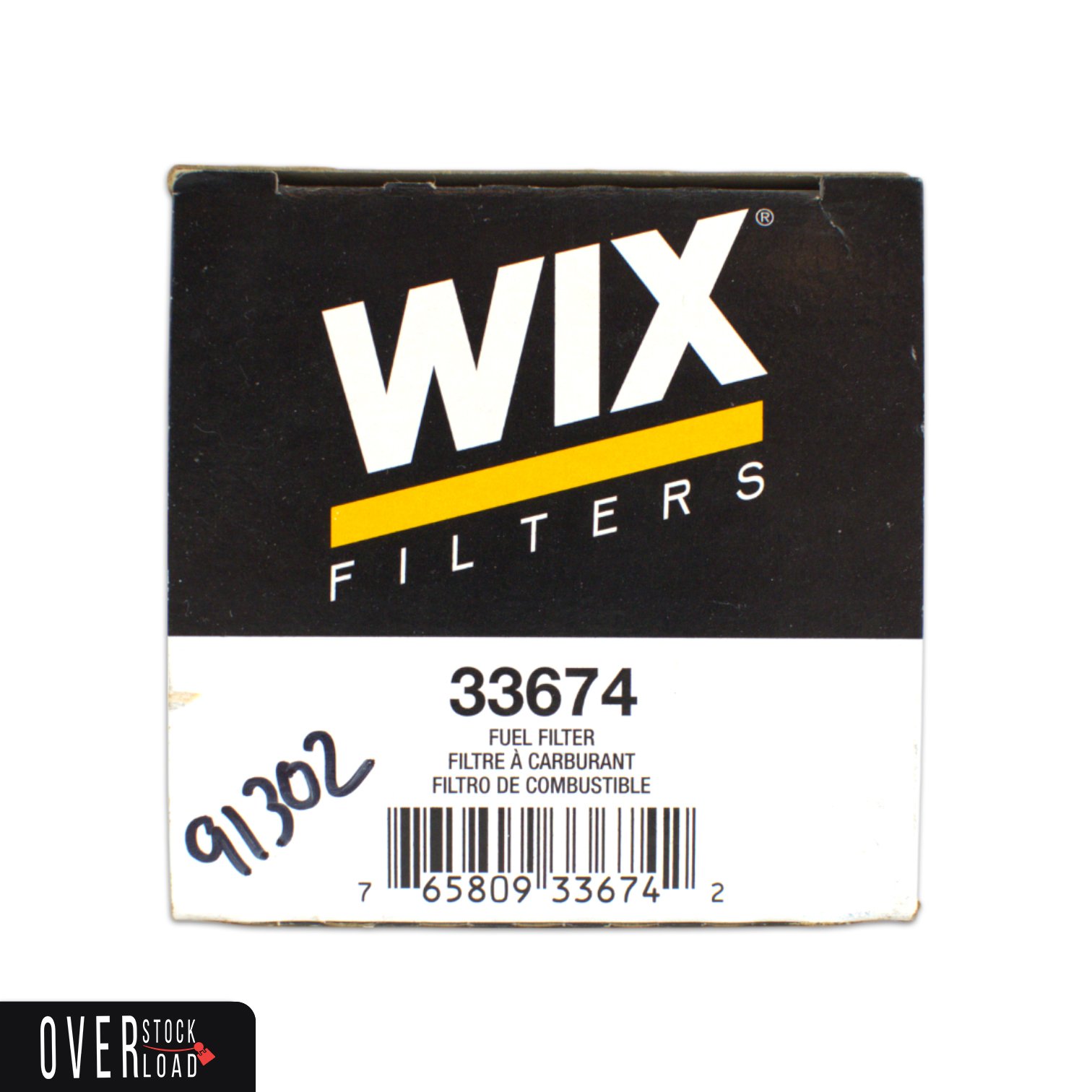

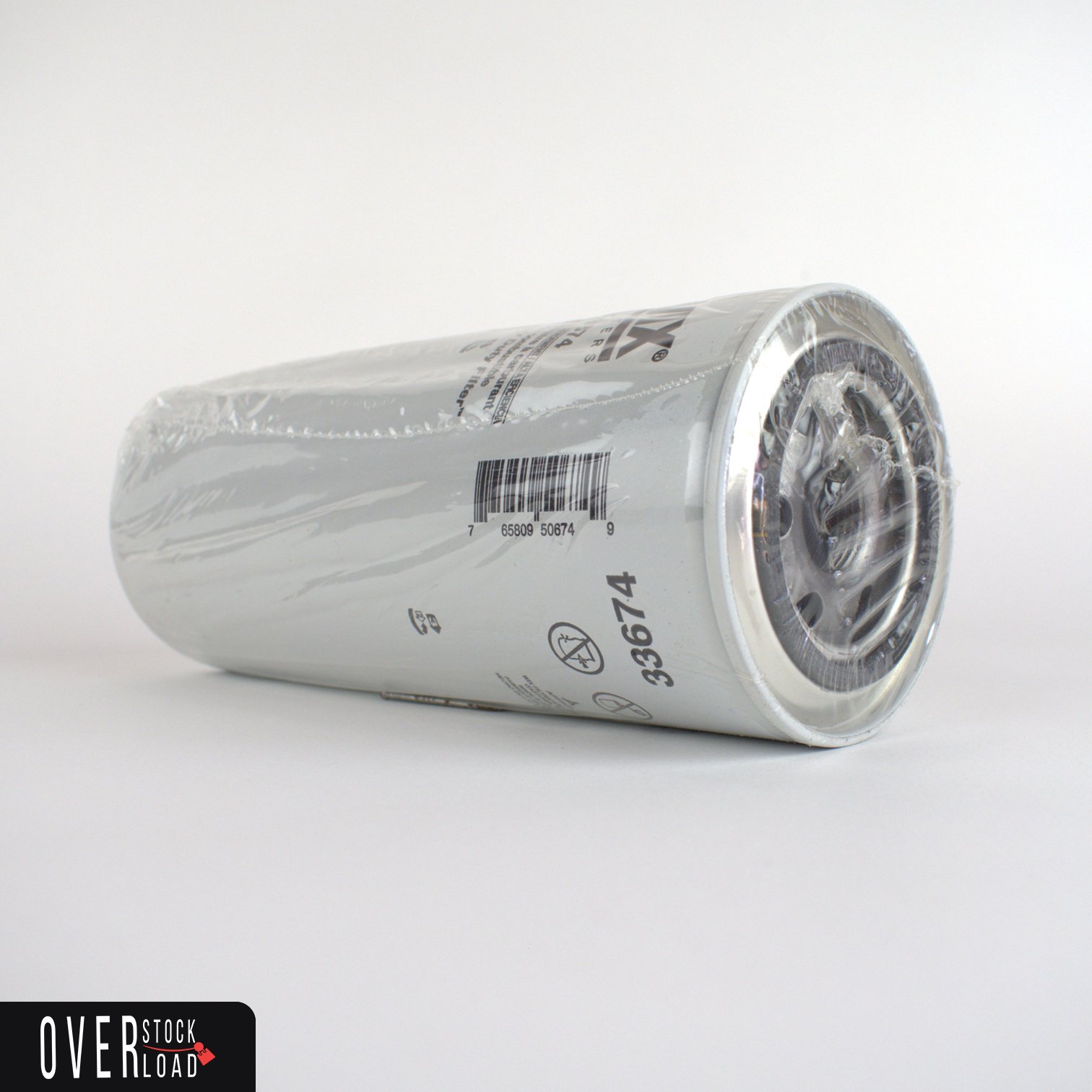

WIX 33674 Spin-On Fuel Filter, Pack of 1 - Free Shipping
fivestar
US $24.99
Condition:
New
2
Available
SKU
765809336742
~Product~
| Condition | New |
| Model/Part # | 33674, WIX 33674 |
| Manufacturer Part Number | 33674 |
| Brand | WIX |
| Type | Fuel Filter |
| UPC | 765809336742 |
| Product Grade | Replacement Part |
| Material | Metal |
| Media Material | Enhanced Cellulose |
| Style | Spin-on Fuel Filter |
| Service | Fuel |
| Filter Type | Fuel Filter |
| Manufacturer | WIX |
| Country/Region of Manufacture | United States |
Add custom item specific
| Finish | Painted |
| Duty Type | HD (Heavy Duty) |
| Nominal Micron Rating | 2 |
Description
WIX 33674 Spin-On Fuel Filter, Pack of 1 - Free Shipping
The WIX 33674 is a high-quality spin-on fuel filter designed for heavy-duty applications, specifically engineered to provide exceptional fuel cleansing performance for various Caterpillar engines and equipment, as well as other compatible heavy trucks and machinery. It effectively removes contaminants such as dirt, rust, scale, and water from the fuel before it reaches the engine's sensitive fuel injection system. By ensuring clean fuel delivery, this filter protects critical engine components from wear and damage, contributing to extended engine life, improved performance, and reliable operation, even in challenging environments.
Highlights
- Enhanced Cellulose Media: Utilizes advanced enhanced cellulose filtration media to achieve a high level of filtration efficiency, often rated at 2 microns nominal, effectively capturing even minute contaminants.
- Spin-On Design: Features a convenient spin-on style for quick and easy installation and replacement during routine maintenance, minimizing downtime.
- Heavy-Duty Construction: Built with robust, corrosion-resistant steel cans, strong center tubes, and durable end caps to withstand high operating pressures (burst pressure up to 419 PSI) and harsh conditions common in heavy-duty applications.
- Superior Sealing: Equipped with high-quality, built-in gaskets to ensure a leak-resistant seal and prevent fuel bypass, ensuring all fuel passes through the filter media.
- Optimal Flow Rate: Designed to handle a high maximum flow rate of 12-15 GPM, ensuring consistent and adequate fuel supply to the engine without significant restriction.
- Protects Fuel System Components: Crucial for safeguarding modern, sensitive fuel injection systems (injectors, fuel pumps) from abrasive particles and water that can cause costly damage and malfunctions.
- Extends Engine & Fuel System Life: By maintaining fuel cleanliness, the filter helps prolong the operational life of the entire fuel system and the engine itself.
- OEM Cross-Reference: Directly replaces Caterpillar part 1R0749 and other equivalent OEM and aftermarket filters, making it a reliable choice for a wide range of heavy equipment.
- Supports OEM Change Intervals: Engineered to meet or exceed OEM specifications, allowing for recommended service intervals and reducing the frequency of filter changes once the fuel system is initially clean.
- Height: 9.321 inches (237 mm)
- Outer Diameter Top: 3.713 inches (94 mm)
- Outer Diameter Bottom: Closed
- Thread Size: 1-14
- Burst Pressure-PSI: 419 PSI
- Max Flow Rate: 12-15 GPM (Gallons Per Minute)
- Gasket Diameters (Attached): O.D.: 2.729 inches (69 mm), I.D.: 2.415 inches (61 mm), Thk.: 0.255 inches (6 mm)
- Principal Application: Various Caterpillar Engines + Equipment (2 Micron). Also found in various Ford, Freightliner, International, Kenworth, Mack, Peterbilt, Volvo, and other heavy-duty trucks and equipment.
